IKA T 50 Digital disperser ULTRA-TURRAX

ITEM NUMBER IKA0003787000

Powerful dispersing instrument for volumes from 0.25 - 30 l (H2O) with digital speed display. It offers a wide speed range from 600 - 10,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantees a wide range of applications. Reproducible operations due to constant speed even with changes in viscosities.

Description

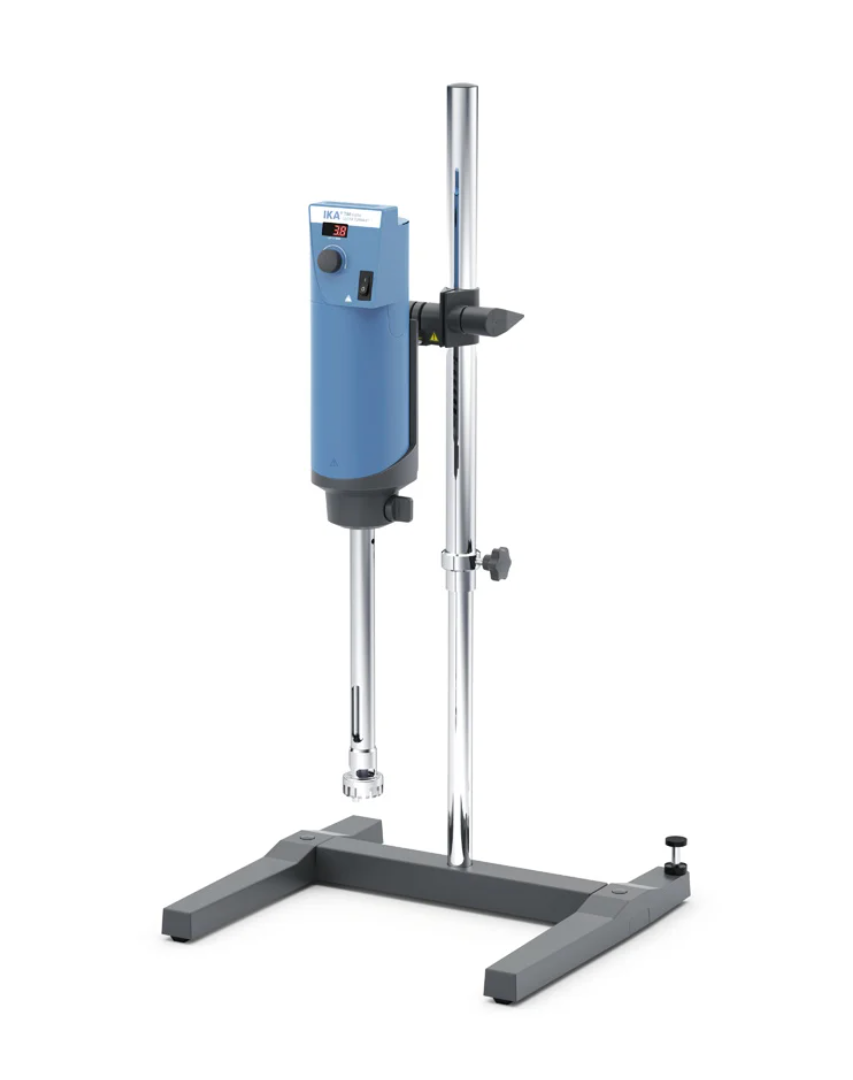

T 50 digital ULTRA-TURRAX®

Images do not correspond to scope of delivery.

Powerful dispersing instrument for volumes from 0.25 - 30 l (H2O) with digital speed display. It offers a wide speed range from 600 - 10,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantees a wide range of applications. Reproducible operations due to constant speed even with changes in viscosities.

  • Digital speed display
  • Electronic speed control
  • Electronic overload protection
  • Stainless steel dispersing elements can be cleaned quickly and easily
  • Smooth start
  • Error code display

The dispersing tool is not included in the scope of delivery.

Scope of delivery

  • T 50 digital ULTRA-TURRAX®
  • Shaft key
  • Generator key

Technical Data

Motor rating input1100 W
Motor rating output700 W
Volume range (H2O)0.25 - 30 l
Viscosity max.5000 mPas
Speed range600 - 10000 rpm
Speed deviation1 %
Speed displayLED
Speed adjustmentstepless
Noise without element72 dB(A)
Extension arm diameter16 mm
Extension arm length220 mm
Process typebatch
Permissible ON time100 %
Dimensions (W x H x D)115 x 355 x 139 mm
Weight5.85 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80% (up to 31°C), decreasing linearly to max. 50 (@40°C)
Protection class according to DIN EN 60529IP 20
Voltage220 - 240 V
Frequency50/60 Hz
Power input1100 W
Specifications
ITEM NUMBER IKA0003787000
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 0003787000
CE-godkendt Ja
