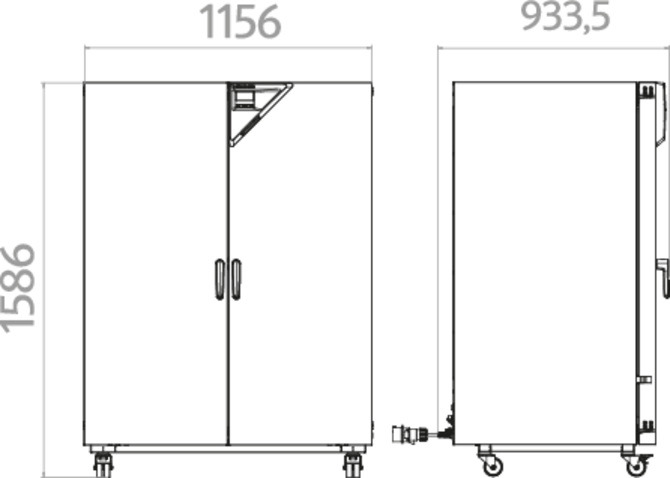

01 abmessungen bd bf ed fd fed720 avantgarde web 670x515 3

Binder FD720 Varmeskab, AL, FK, 741 liter

ITEM NUMBER BIN90100311

Benefits

  • Best energy efficiency on the market.
  • Excellent temporal and spatial temperature accuracy.
  • USB connection for recording data.
  • Temperature range up to +300 °C.
Description

A BINDER FD series Avantgarde.Line heating oven is always used when fast drying and sterilization is required. Thanks to its fully homogeneous temperature distribution, quick dynamics and powerful fan, this heating oven saves valuable time.

Benefits

  • Best energy efficiency on the market
  • Excellent temporal and spatial temperature accuracy
  • USB connection for recording data
  • Temperature range up to 300 °C

Important characteristics

  • Temperature range: ambient temperature plus 10 °C to 300 °C
  • High temperature accuracy thanks to APT.line technology
  • Forced convection
  • Controller with LCD display
  • Electromechanical control of the exhaust air flap
  • 2 chrome-plated racks
  • Units up to 115 L are stackable
  • Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
  • Ergonomic handle design
  • USB port for recording data

Performance Data Temperature

DesignationFD720-400V
Temperature range+12 °C above ambient temperature to 300 °C
Temperature uniformity at 150°C2.5 ± K
Temperature fluctuation at 150°C0.6 ± K
Heating up time to 150°C25 min
Recovery time after door was opened for 30 s at 150°C6 min

Air change data

DesignationFD720-400V
Air change rate at 100°C5 x/h

Electrical data

DesignationFD720-400V
Rated Voltage400 V
Power frequency50/60 Hz
Nominal power4,5 kW
Unit fuse16,0 A
Phase (Nominal voltage)3~

Measures

DesignationFD720-400V
Interior volume741 L
Net weight of the unit (empty)166 kg
Load per rack45 kg
Permitted load315 kg
Wall clearance back160 mm
Wall clearance sidewise100 mm

Housing dimensions not incl. fittings and connections

DesignationFD720-400V
Width net1,165 mm
Height net1,590 mm
Depth net870 mm

Internal Dimensions

DesignationFD720-400V
Interior width1,000 mm
Interior height1,300 mm
Interior depth570 mm
Unit doors2

Environment-specific data

DesignationFD720-400V
Sound-pressure level43 dB(A)
Energy consumption at 100°C480 Wh/h
Energy consumption at 150°C800 Wh/h

Fixtures

DesignationFD720-400V
Number of shelves (std./max.)2/16
Specifications
ITEM NUMBER BIN90100311
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 9010-0311
CE-godkendt Ja
