IKA LR 2000.2 Reactor vessel

ITEM NUMBER IKA0002509600

Double-walled reactor vessel with bottom discharge including accessories for the laboratory reactors LR-2.ST.
Volume: 2.0 l
Material in contact with medium: Borosilicatglass 3.3, PTFE.
Including stainless steel metal adapter M 16x1 (Male) for connection of temperature hoses or quick connection adapters.

Description

LR 2000.2 Reactor vessel

Double-walled reactor vessel with bottom discharge including accessories for the laboratory reactors LR-2.ST.
Volume: 2.0 l
Material in contact with medium: Borosilicatglass 3.3, PTFE.
Including stainless steel metal adapter M 16x1 (Male) for connection of temperature hoses or quick connection adapters.

Scope of delivery:
Glass reactor incl. metal adapters

Technical Data

Material in contact with mediumborosilicate glass 3.3 DIN ISO 3585, PTFE
Volume2 l
Vessel inner diameter150 mm
Vessel outer diameter200 mm
Height (room dimension)400 mm
Width (room dimension)200 mm
Depth (room dimension)180 mm
Flange dimensionDN150
Bottom shapeTorispherical head
Bottom drainyes
Bottom valveStandard valve
Bottom drain outlet inner diameter11 mm
Bottom drain outlet outer diameter15 mm
Heating blanketyes
Tempering jacket inlet connectionDN 15 (tech-flange)
Tempering jacket inlet inner diameter15 mm
Vacuum applicationyes
Tempering jacket outlet connectionDN 15 (tech-flange)
Tempering jacket oulet inner diameter15 mm
Reactor vessel materialborosilicate glass 3.3 DIN ISO 3585
Weight3.6479 kg
Specifications
ITEM NUMBER IKA0002509600
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 0002509600
CE-godkendt Ja
Files

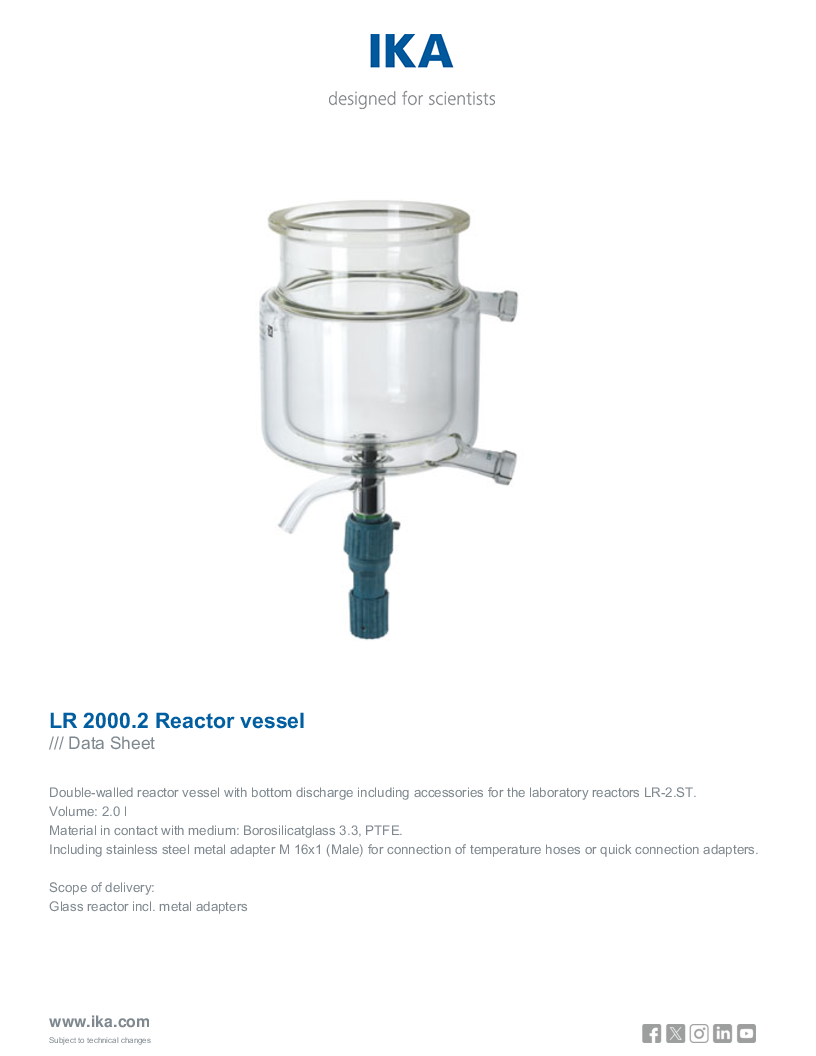

Data Sheet LR 2000.2 Reactor vessel
