IKA R 2723 Telescopic stand

ITEM NUMBER IKA0001412100

Particularly stable stand with H-shape base which prevents the stand from tipping backwards.
Additionally equipped with a pneumatic spring stand rod, which enables heavy instruments/ attachments to be raised and lowered smoothly without difficulty, e.g. with rheological measurements using overhead stirrers. The stand has an adjustment screw which can be used to compensate for an uneven laboratory table surface.

Description

R 2723 Telescopic stand

Particularly stable stand with H-shape base which prevents the stand from tipping backwards.
Additionally equipped with a pneumatic spring stand rod, which enables heavy instruments/ attachments to be raised and lowered smoothly without difficulty, e.g. with rheological measurements using overhead stirrers. The stand has an adjustment screw which can be used to compensate for an uneven laboratory table surface.

Diameter of support rod: 34 mm

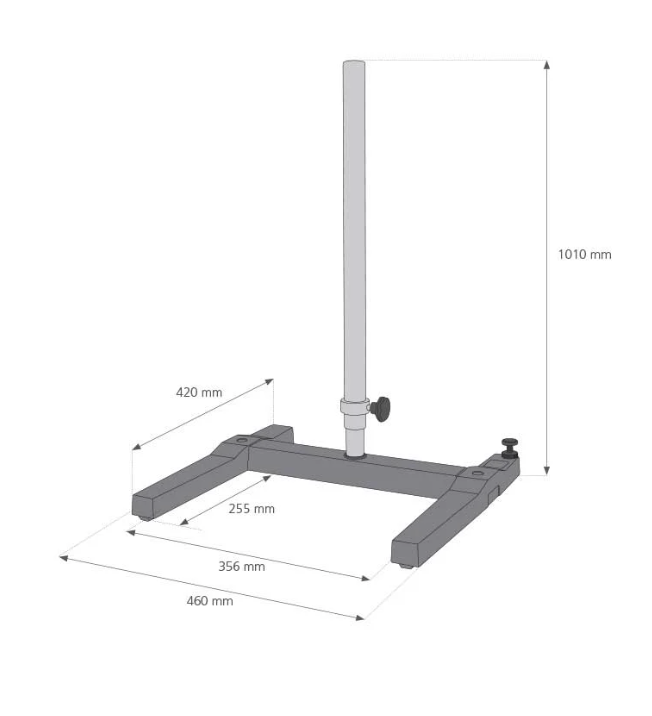

Dimensions (W x D): 460 x 420 mm
Height: 620 - 1.010 mm
Max. load: 10 kg
Stroke 390 mm

Technical Data

Stroke max.390 mm
Diameter34 mm
Dimensions (W x H x D)460 x 1010 x 420 mm
Weight5.081 kg
Permissible ambient temperature5 - 40 °C
Specifications
ITEM NUMBER IKA0001412100
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 0001412100
Vægt 5,081
CE-godkendt Ja
