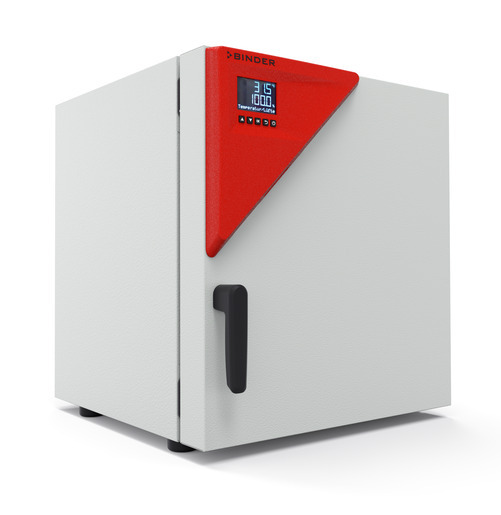

Binder FP056 Varmeskab, AL, FKP, 60 liter

ITEM NUMBER BIN90100363

Benefits

  • High temperature accuracy thanks to APT.line technology
  • User-friendly controller with large display
  • Computer interface: Ethernet
  • Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller
Description

A BINDER material test chamber with mechanical convection of the FP series provides reliably short drying times and particularly fast heating - even for chambers under full loads.

Benefits

  • High temperature accuracy thanks to APT.line technology
  • User-friendly controller with large display
  • Computer interface: Ethernet
  • Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller

Important characteristics

  • Temperature range: +10°C above ambient temperature up to +300°C
  • High temperature accuracy thanks to APT.line technology
  • Adjustable fan speed
  • Controller with interval and real-time programming
  • Electromechanical control of the exhaust air flap

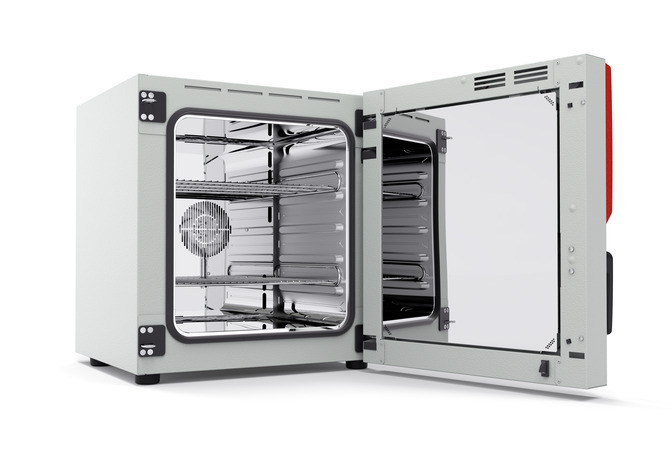

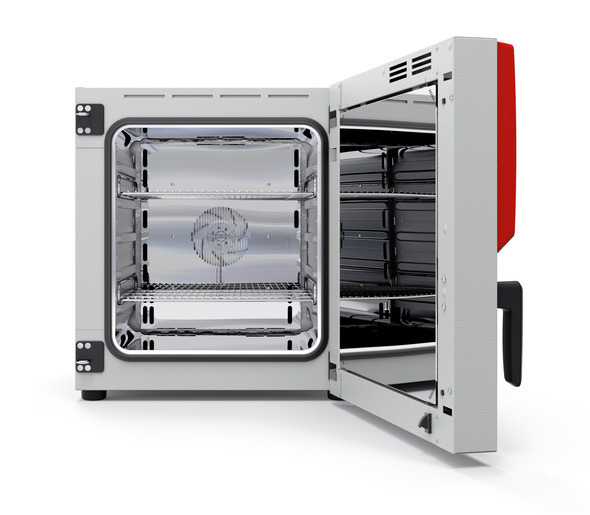

  • 2 chrome-plated racks
  • Units up to 115 liters are stackable
  • Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller
  • Ergonomic handle design
  • Computer interface: Ethernet
  • Internal data logger, measured values can be read out in open format via USB

Performance Data Temperature

DesignationFP056-230VFP056UL-120V
Temperature range+10 °C above ambient temperature to 300 °C+10 °C above ambient temperature to 300 °C
Temperature uniformity at 150°C1.4 ± K1.4 ± K
Temperature fluctuation at 150°C0.4 ± K0.4 ± K
Heating up time to 150°C15 min15 min
Recovery time after door was opened for 30 s at 150°C4 min4 min

Air change data

DesignationFP056-230VFP056UL-120V
Air change rate at 100°C80 x/h80 x/h

Electrical data

DesignationFP056-230VFP056UL-120V
Rated Voltage230 V120 V
Power frequency50/60 Hz60 Hz
Nominal power1,2 kW1,2 kW
Unit fuse10,0 A16,0 A
Phase (Nominal voltage)1~1~

Measures

DesignationFP056-230VFP056UL-120V
Interior volume60 L60 L
Net weight of the unit (empty)41 kg41 kg
Load per rack30 kg30 kg
Permitted load70 kg70 kg
Wall clearance back160 mm160 mm
Wall clearance sidewise100 mm100 mm

Housing dimensions not incl. fittings and connections

DesignationFP056-230VFP056UL-120V
Width net560 mm560 mm
Height net622 mm622 mm
Depth net596 mm596 mm

Internal Dimensions

DesignationFP056-230VFP056UL-120V
Interior width400 mm400 mm
Interior height440 mm440 mm
Interior depth342 mm342 mm
Unit doors11

Environment-specific data

DesignationFP056-230VFP056UL-120V
Sound-pressure level43 dB(A)43 dB(A)
Energy consumption at 100°C180 Wh/h180 Wh/h
Energy consumption at 150°C290 Wh/h290 Wh/h

Fixtures

DesignationFP056-230VFP056UL-120V
Number of shelves (std./max.)2/42/4
Specifications
ITEM NUMBER BIN90100363
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 9010-0363
CE-godkendt Ja
